Lever extrusion pinch valve
Lever extrusion pinch valves / MFO manual series

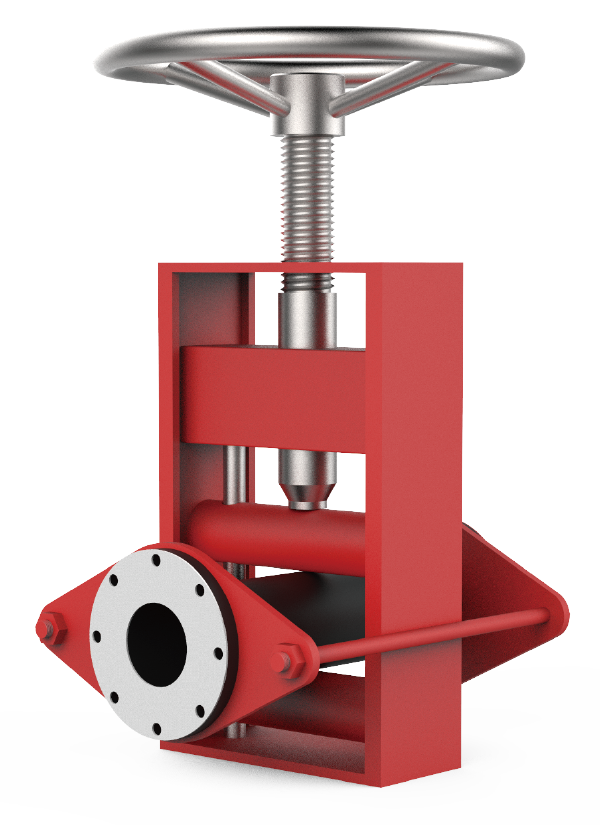

MFO series manual pinch valve is a flanged pinch valve driven manually by hand wheel and screw. Its working principle is as shown in the figure. The screw drives the upper and lower clamping crossbars to squeeze the inner bushing, so that the inner bushing is clamped and the valve is closed; When the handwheel is rotated reversely, the inner bushing is opened and the valve is smooth; The entire clamping device is suspended on the inner bushing.

Dimension diagram
