Air direct-pressure pinch valve

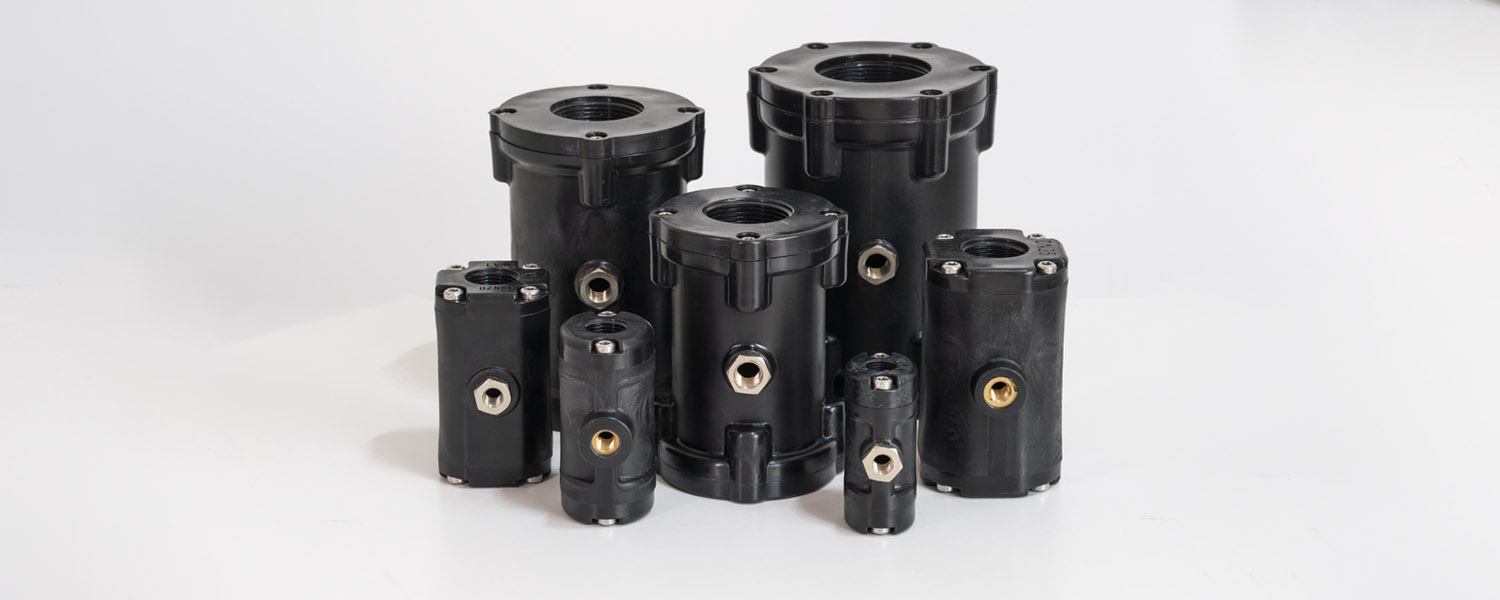

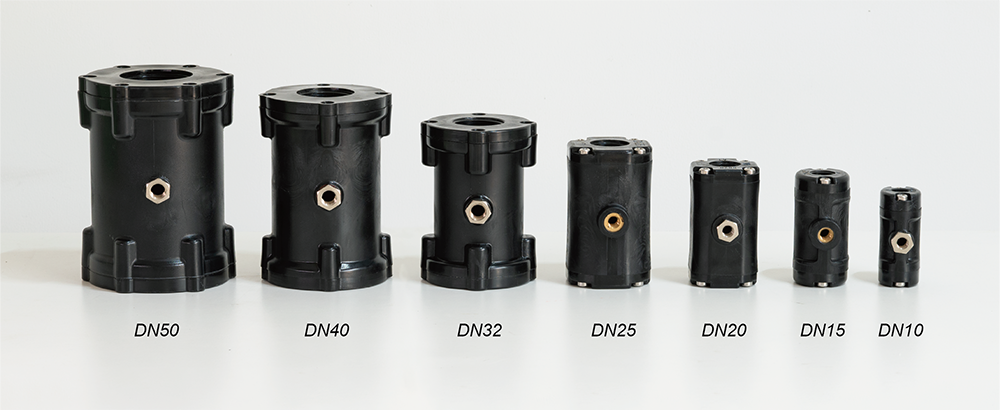

Air operated pinch valves / ATP-1 air operated series

The ATP-1 series European standard pinch valve is interchangeable with the VMP series products of AKO Company in Germany, and its performance and structure are consistent. This series of products are widely used in the fields of train vacuum toilet, chemical industry, spraying, material transportation, sewage treatment, etc.
Main technical parameters
Operating ambient temperature: -40~80ºC
Maximum operating air pressure: 0.8MPa
Shut off air pressure:0.3Mpa
Switch life: ≥400,000 times

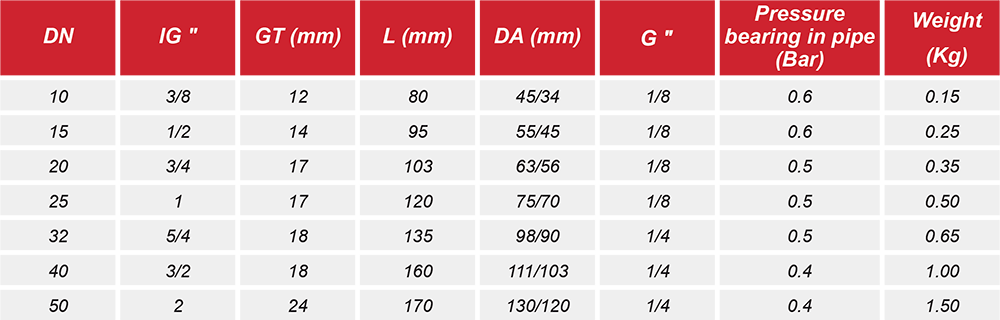

See the table for other parameters
Schematic diagram of working principle

Dimension diagram
