Air direct-pressure pinch valve
Air operated pinch valves / AFAP air operated series

Main technical parameters
Selectable operating environment temperatures:
-40 to 60°C, -40 to 80°C, -40 to 120°C, -40 to 180°C.
Maximum pressure resistance of the sleeve: 0.6
MPa.
Closing air pressure: 0.25 MPa.
Maximum pressure resistance of the valve body:
0.6 MPa.
Switching life: ≥500,000 cycles.
Weight: 1.5 Kg.

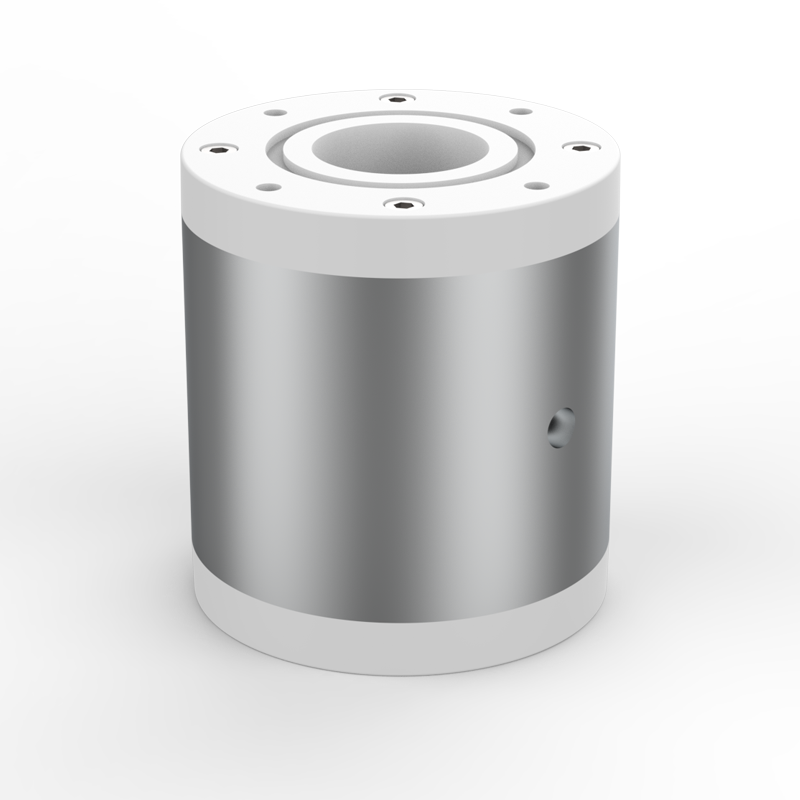

AFAP-DN50 clamp valve is an upgraded product carefully developed on the basis of the AFP series, targeting the high-end market and special application requirements. It not only maintains the interchangeability of installation dimensions with the AFP-1-DN50 and AFP-2-DN50 models but also has significant improvements in material and design.
- Aluminum alloy valve body: Made of lightweight and high-strength aviation aluminum material, ensuring the durability and stability of the valve body while reducing the overall weight.
- High-strength plastic end caps: Made of high-strength, high-temperature resistant, and highly corrosion-resistant engineering plastics, the overall structure strength in conjunction with the aluminum alloy valve body is close to that of metal components.
- High-temperature resistance: The valve body has a long-term temperature resistance of 200°C without changing its mechanical properties, and can withstand the working temperature range of different specifications of inner lining sleeves; inner lining sleeves can be selected with different temperature resistance specifications to meet the different needs of customers, divided according to the temperature resistance range -40~60℃, -40~80℃, -40~120℃, -40~180℃.
- Optimized valve structure: The valve structure has been carefully designed and upgraded to improve the overall mechanical strength and high-temperature resistance, ensuring reliability under various working conditions, and is more suitable for the installation of electric trace heating components and heat transfer performance.
These features of the AFAP-DN50 clamp valve make it an ideal choice for a variety of industrial and commercial environments, providing excellent performance and reliability in both mechanical strength and temperature resistance.
Dimension diagram
