Main Technical Parameter:
Surrounding Temperature-40~+80℃
Max. Pressure Bearing0.8MPa
Closing Pressure0.3MPa
Airtight Max. Pressure of air room0.5MPa;
Life of Open & Closing ≥ 500,000 times
Other Parameters:

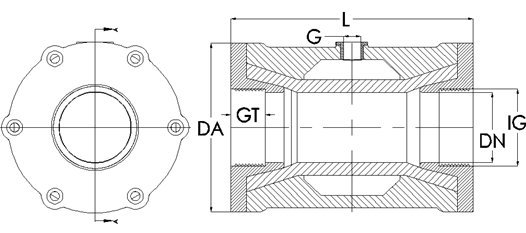

DN Dia.(mm) | Screw IG(inch) | T(mm) | L(mm) | DA(mm) | Screw G(inch) | Pressure Bearing(bar) | Weight(Kg) |
10 | 3/8 | 12 | 80 | 45/34 | 1/8 | 6.0 | 0.15 |
15 | 1/2 | 14 | 95 | 55/46 | 1/8 | 6.0 | 0.25 |
20 | 3/4 | 17 | 103 | 63/56 | 1/8 | 6.0 | 0.35 |
25 | 1 | 17 | 120 | 75/70 | 1/8 | 6.0 | 0.50 |
32 | 1 1/4 | 18 | 135 | 98/90 | 1/4 | 5.0 | 0.65 |
40 | 1 1/2 | 18 | 160 | 111/103 | 1/4 | 5.0 | 1.00 |
50 | 2 | 24 | 170 | 130/120 | 1/4 | 5.0 | 1.50 |

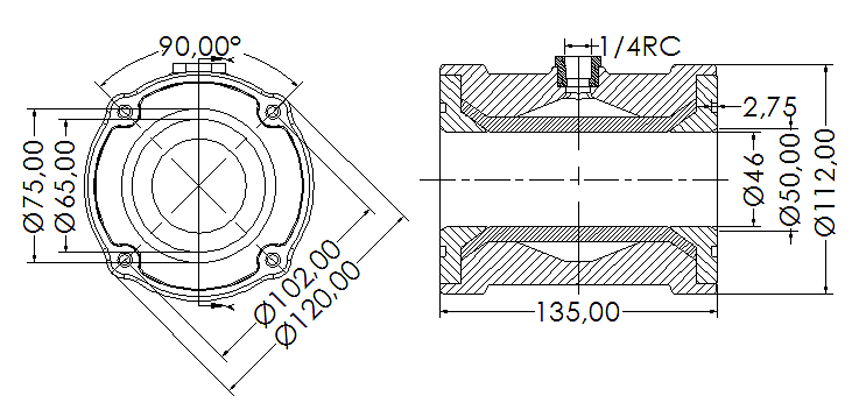

Main Technical Parameter:
Surrounding Temperature-40~+80℃
Max. Pressure Bearing1.0MPa
Closing Pressure0.25MPa
Airtight Max. Pressure of air room 0.5MPa;
Life of Open & Closing ≥ 500,000 times
Weight 1Kg
